FEATURES
- Resistance Range:1Ω to maximum listed
- Standard Tolerances:
±.02%, ±.05%, ±.1%,± .2%,± .5%, & ±1%(all values)
±.005%, ± .01% (10Ω and over) - Standard Temperature Coefficient:
- 1Ω to <10Ω: ± 25PPM
- 10Ω to <100Ω: ± 15PPM
- 100Ω and over: ± 10PPM
- (TC's available to ± 2PPM (25Ω and over))
- Operating Temperature range: -65°C to 145°C
- TC Matching to ±0.5 PPM/°C @ 25°C
- RoHS compliant, Pb-Free construction available
- Custom Designs Welcome
PERCENT OF RATED POWER

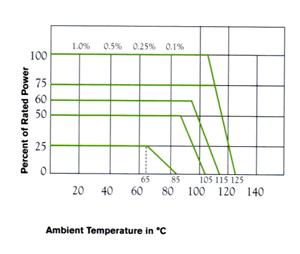

KRL Precision Wirewound Resistor Derating Curve
PC and K Series resistors must be derated for tolerances below 0.1%, and for elevated ambient temperatures. Use the curve for the desired tolerance, and, knowing the maximum ambient temperature expected during use, determine the maximum allowed percentage of rated power from the graph.
|
|
 |
PRINTED CIRCUIT RESISTORS --- PC SERIES
| KRL STYLE |
MIL- R-93 |
DIMENSIONS | POWER IN WATTS | MAXIMUM VOLTAGE |
MAXIMUM RESISTANCE |
||||
|---|---|---|---|---|---|---|---|---|---|
|
HEIGHT
± .032 |
DIA.
± .015 |
LEAD
SPACING ± .010 |
LEAD
AWG |
MIL
125°C |
COMM
125°C |
||||
| †PC-50 | RB-71 |
0.312
|
0.250
|
0.200
|
22
|
0.125
|
0.250
|
300
|
500 K
|
| PC-51 |
0.375
|
0.250
|
0.200
|
22
|
0.125
|
0.250
|
300
|
650 K
|
|
| PC-52 |
0.500
|
0.250
|
0.200
|
22
|
0.250
|
0.500
|
300
|
700 K
|
|
| PC-55 | RB-70 |
0.500
|
0.375
|
0.200
|
20
|
0.350
|
0.700
|
300
|
1.5 Meg
|
PRINTED CIRCUIT RECTANGULAR RESISTORS --- K SERIES
| KRL STYLE |
DIMENSIONS | POWER in WATTS | MAXIMUM VOLTAGE |
MAXIMUM RESISTANCE |
|||||
|---|---|---|---|---|---|---|---|---|---|
|
HEIGHT
± .032 |
WIDTH
± .020 |
LENGTH
± .020 |
LEAD
SPACING ± .010 |
LEAD
AWG |
MIL
125°C |
COMM
125°C |
|||
| K-250 |
.250
|
0.125
|
0.250
|
0.125
|
20
|
0.125
|
0.250
|
150
|
500 K
|
| †K-300 |
.300
|
0.125
|
0.300
|
0.150
|
22
|
0.125
|
0.300
|
150
|
1 MEG
|
| K-500 |
.300
|
0.150
|
0.500
|
0.250
|
20
|
0.250
|
0.500
|
150
|
1.5 MEG
|
†Indicates most popular types.
