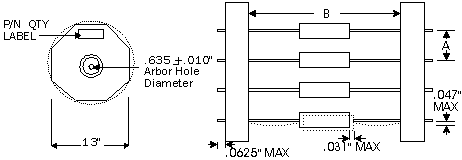

Axial Lead Resistors (Tape & Reel)
| COMPONENT BODY DIAMETER | COMPONENT PITCH "A" [ ± .020" (0.050mm)] |
TAPE SPACING "B" ± .059" (1.5mm) MIN: 1.75" (44.45mm) MAX: 3.312" (84.12mm) |
||
|---|---|---|---|---|
| .000" (000mm) to .197" (5.00mm) |
.197" (5.00mm)
|
CLASS
I |
CLASS
II |
CLASS
III |
| .198" (5.00mm) to .394" (10.00mm) |
.394" (10.00mm)
|
|||
| .395" (10.00mm) to .591" (15.00mm) |
.591" (15.00mm)
|
2.063" (52.4mm)
|
2.50" (63.5mm)
|
2.874" (73mm)
|
